Overview
The Web Application allows users to inquire historical transactions records through material transactions, job transactions, machine transactions, field value changes and background task. The form can be found as shown below:
Users can export the records via:
- Click Export to Excel to export the result into Excel format.
- Click Export to CSV to export the result into CSV format.
Material Transactions
Under the History section of the Web Application menu, the Material Transactions form allows users to view and filter the list of historical inventory transactions. It allows users to view information such as:
- The type of transaction performed
- Identify any item that was used in the transaction
- The quantity of the item transacted
- The user who created the transaction
The fields in the Material Transactions form are:
| FIELD | DESCRIPTION |
|---|---|
Trans. Num | Transactions number. This is system generated unique number to tag each transaction. Note: By default, they are sorted in descending order. |
Trans. Type | Transaction Type. Defines the nature of the transaction performed for that particular record. Refer to Appendix for the full list of transaction types and their meaning. |
Trans. Date | Date and time the transaction was performed. |
Item | Item used in the transaction. |
Description | The transacted item’s description. |
UOM | The item’s base unit of measure. |
Qty | The transacted quantity based on the item’s base unit of measure. |
Trans. UOM | The actual unit of measure transacted. |
Trans. Qty | The transacted quantity based on the actual unit of measure of the transaction. |
Warehouse | Warehouse where the transaction was performed. |
Location | Location where the transaction was performed. |
Lot Number | Identifies the lot number for the item if it is a lot tracked item. |
| LPN | Identifies os the pallet |
Work Center | Work center related to the production operation and job route. |
Ref Num | Reference document/order number (i.e.: purchase order, production order) . |
| Suffix | The job order suffix number. |
Ref Line | Reference document/order line number. |
Ref Release | Reference job material sequence number. |
Pick List Num | Pick list number. For transactions from the pick list. |
Reason Code | Certain transactions requires a reason code and can be used to categorize the purpose of the transaction. |
Reason Code Description | The description of the reason code. |
Doc Number | An external document or note reference number. |
Vendor Lot | Lot number provided by the vendor. |
Vendor DO | Vendor delivery order number. |
| Integration Log ID | This field displays the unique identifier for the integration log associated with the material transaction. |
Created Time | Date and time stamp of the transaction. |
Created By | Identifies the user who performed the transaction. |
Site ID | Identifies the site. |
Filter Results
Users may filter results by:
- Trans. Date - Select the range of dates to filter the results.
- Trans. Type - Select a transaction type from the drop-down list.
- Click the Filter button to filter result.
- Click the Reset button to clear all the filters.
Value Change Log
Under the History section of the Web Application menu, the Value Change Log form provides an audit trail to the changes of the field value or status.
The fields in the Value Change Log form are:
| FIELD | DESCRIPTION |
|---|---|
Trans. Num | Transaction number. This is a system generated unique number to tag each transaction. Note: By default, they are sorted in descending order. |
Form Name | The form where the field value changed. |
Field Name | The field which the value changed. |
Old Value | Field value before the change. |
New Value | Field value after the change. |
Ref Num | The field reference/order number. |
| Suffix | The suffix number for job order. |
Ref Line | The order line number or job operation number. |
Ref Release | The job material sequence. |
| Location | Use when change on quantity allocated, identifies allocated location. |
| Lot Num | Use when change on quantity allocated, identifies allocated lot number. |
Modified By | Identifies the user who modified the field value. |
Modified Time | Date and time of the modification. |
Site ID | Identifies the site. |
Filter Results
Users may filter results by:
- Modified Date - Select the range of dates to filter the results.
- Form Name - Select a form from the drop-down list.
- Click the Filter button to filter result.
- Click the Reset button to clear all the filters.
Import Log
Under the History section of the Web Application menu, the Import Log form provides an audit trail to all the import actions.
The fields in the Import Log form are:
| FIELD | DESCRIPTION |
|---|---|
Imported Date/Time | Date and time of the import action. |
Object | Identifies which form that the user imports into. |
Filename | The excel file name that the user imports. |
Status | Indicates the status of the import. Success or failed imports. |
Created By | Identifies the user who perform the import. |
Rows | Identifies the number of lines in the import file. |
Filter Results
Users may filter results by:
- Imported Date - Select the range of dates to filter the results.
- Object - Select the object where the import happened.
- Click the Filter button to filter results.
- Click the Reset button to clear all the filters.
Export Log
Under the History section of the Web Application menu, the Export Log form provides an audit trail to all the export actions.
The fields in the Import Log form are:
| FIELD | DESCRIPTION |
|---|---|
Exported Date/Time | Date and time of the export action. |
Object | Identifies which form that the user export from. |
Filename | The excel file name that the user exports. Users can download the exported file for 24 hours. After that, the link expires. If the link expires, users can initiate the export process again to get a new active link. |
Status | Indicates the status of the export. Success or failed exports. |
Created By | Identifies the user who perform the export. |
Rows | Identifies the number of lines in the export file. |
Filter Results
Users may filter results by:
- Exported Date - Select the range of dates to filter the results.
- Object - Select the object where the export happened.
- Click the Filter button to filter results.
- Click the Reset button to clear all the filters.
Background Tasks
Under the History section of the Web Application menu, the Background Tasks form allows users to monitor the tasks that have been run, to verify if they have completed successfully.
The fields in the Background Tasks form are:
| FIELD | DESCRIPTION |
|---|---|
Task Num | Task number. This is system generated unique number to tag each background task. Note: By default, they are sorted in descending order. |
Task Name | The background task name. |
Task Description | The description of the background task. |
Status | Indicates the status of the background task: Waiting, Running, Completed, or Failed. |
Submitted By | Identifies the user who submitted the background task. |
Submitted Date | Identifies the date time when the background task was submitted. |
Started Date | Identifies the start date and time when the background task started. |
Completed Date | Identifies the date and time when the background task was completed. |
Parameter | The allocation batch number of the background task. |
Remark | The successful and failed information of the allocation background task. |
Action | Click to view the allocation details. |
Filter Results
Users may filter results by:
- Submitted Date - Select the range of dates to filter the results.
- Status - Select a status type from the drop-down list.
- Click the Filter button to filter results.
- Click the Reset button to clear all the filters.

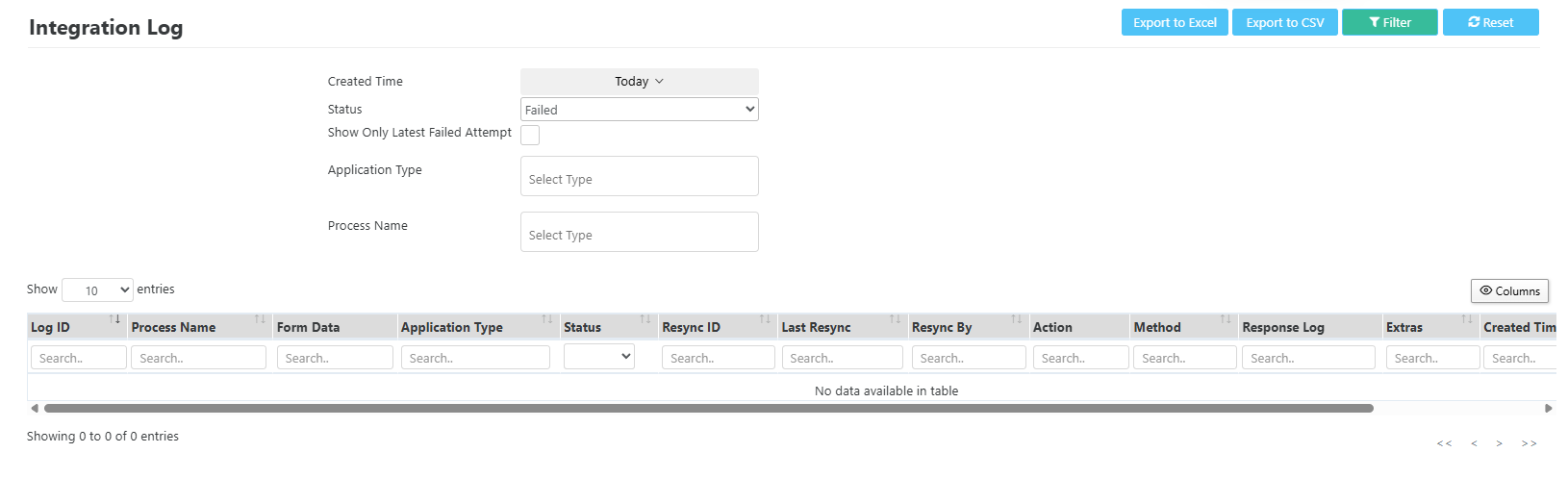

Integration Log
Under the History section of the Web Application menu, the Integration Log form allows users to see the triggered API integrations tasks and their results. You can get an overview of all successful and failed attempts to API synchronize data between Axacute and your system.
To ensure optimal performance and maintain a clean log history, please note that log entries older than one 90 days will be automatically deleted from the Integration Log. This automated process helps streamline the log data and keeps it relevant to recent integration activities.
The fields in the Integration Log form are:
| FIELD | DESCRIPTION |
|---|---|
| Log ID | This is system generated unique number to tag each integration log. Note: By default, they are sorted in descending order. |
Process Name | The process name of the integration. |
| Post Data | The Form Data interface provides a way to construct a set of key/value pairs representing form fields and their values |
| Application Type | Name of the application associated with the integration. |
| Status | Status of the action, such as New, Success or Failed. |
| Method | HTTP API methods:- 1. Post - create operation 2. Get - retrieve operation 3. Put - update operation 4. Delete - delete operation |
| Response Log | Response payload in JSON format to a POST method request payload |
| Extras | Service Name of the API endpoints |
| Created Time | Identifies the date time when the background task was submitted. |
| Created By | Identifies the user who submitted the integration task |
Users may filter results by:
- Duration Day(s) - Select the predefined Created Time date range to filter the results.
- Status - Select a status type from the drop-down list.
- Application Type - Select a application type from the drop-down list.
- Click the Filter button to filter results.
- Click the Reset button to clear all the filters.
